Appendix II - Example Problem Results — The Thermal Playground

Skip to Content

The Thermal Playground

Project Description

Project Schedule

Example 4.3 - Steady State

Example 5.11 - Transient

Appendix I - Glossary

Appendix II - Example Problem Results

Appendix III-A - Nodal Equations (Examples)

Appendix III-B - MATLAB Scripts (Examples)

Appendix IV-A - Nodal Equation (2D Steady-State)

Appendix IV-B - MATLAB Scripts (2D Steady State)

Appendix V-A - Nodal Equation (Transient Analysis)

Appendix V-B - MATLAB Script (Transient Analysis)

The Thermal Playground

Project Description

Project Schedule

Example 4.3 - Steady State

Example 5.11 - Transient

Appendix I - Glossary

Appendix II - Example Problem Results

Appendix III-A - Nodal Equations (Examples)

Appendix III-B - MATLAB Scripts (Examples)

Appendix IV-A - Nodal Equation (2D Steady-State)

Appendix IV-B - MATLAB Scripts (2D Steady State)

Appendix V-A - Nodal Equation (Transient Analysis)

Appendix V-B - MATLAB Script (Transient Analysis)

Project Description

Project Schedule

Folder: Analysis

Folder: Examples

Example 4.3 - Steady State

Example 5.11 - Transient

Folder: Appendices

Appendix I - Glossary

Appendix II - Example Problem Results

Appendix III-A - Nodal Equations (Examples)

Appendix III-B - MATLAB Scripts (Examples)

Appendix IV-A - Nodal Equation (2D Steady-State)

Appendix IV-B - MATLAB Scripts (2D Steady State)

Appendix V-A - Nodal Equation (Transient Analysis)

Appendix V-B - MATLAB Script (Transient Analysis)

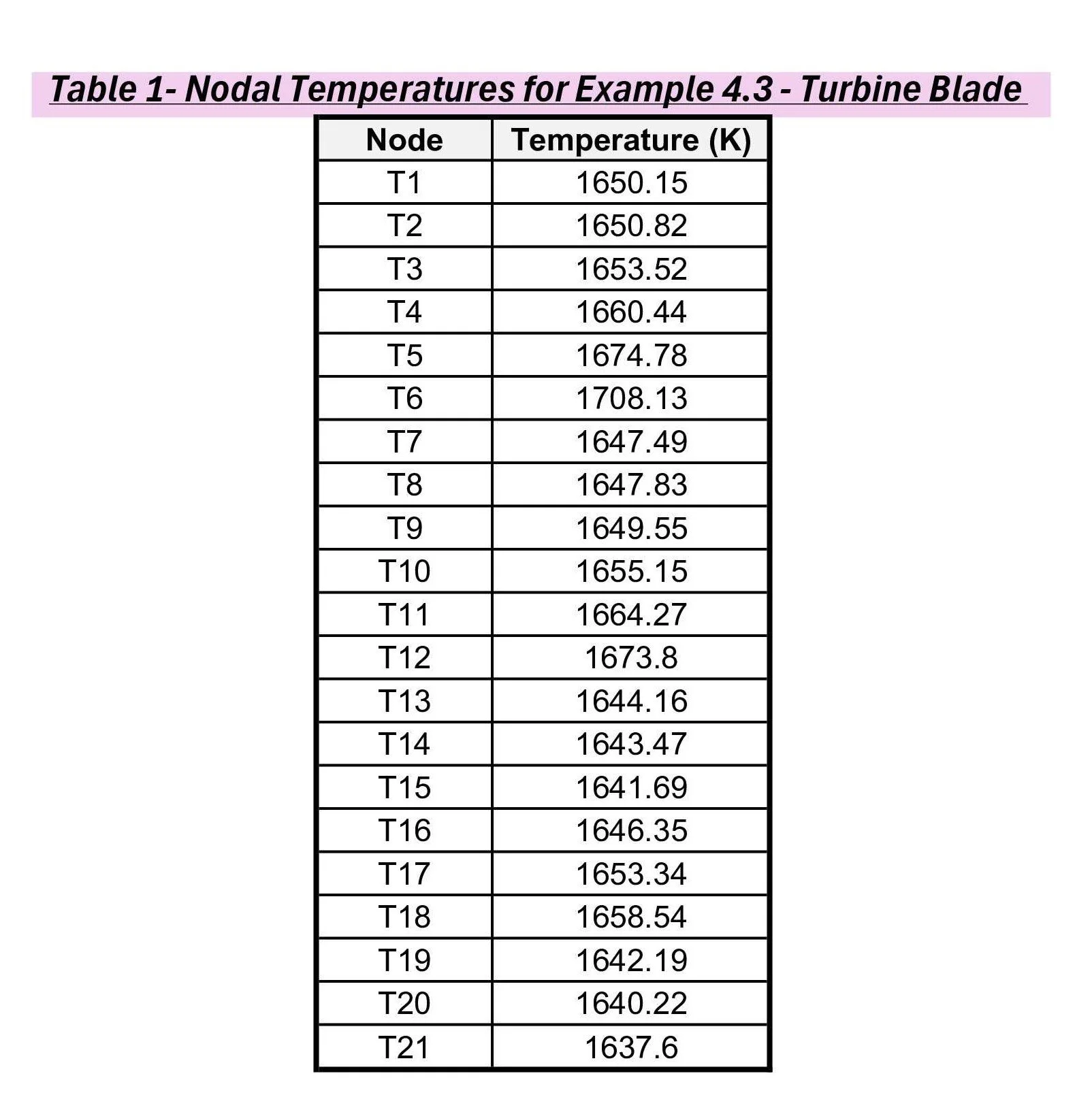

Table 3 – Temperature Results for Example 4.3

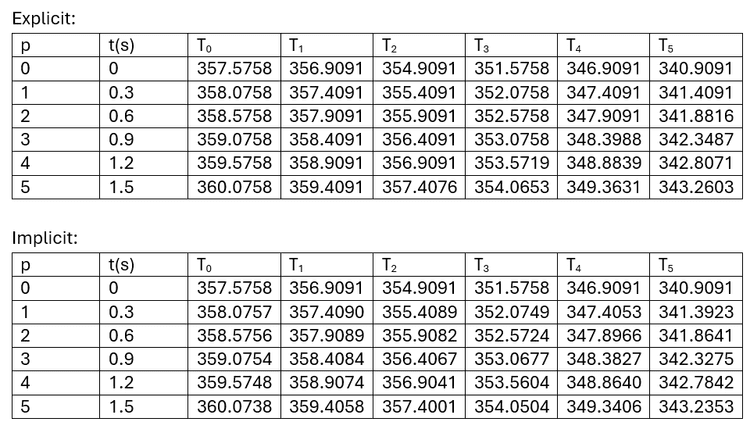

Table 4 – Temperature results of Explicit & Implicit Example 5.11
